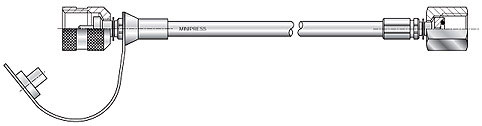

Hose for mineral and hydraulic oil,type ASTM3,fuel,brake systems oil(type DOT 4)
| RD2 | RD3 | RD4 | ||
|---|---|---|---|---|
| Outside diameter | [mm] | 5 | 6 | 8 |
| inside diameter | [mm] | 2 | 3 | 4 |
| max working pressure | [bar] | 630 | 630 | 500 |
| min bursting pressure | [bar] | 1890 | 1890 | 1500 |
| min bending radius | [mm] | 20 | 25 | 35 |
| working temperature | °C | -40...+100 | -40...+100 | -40...+100 |
| core material | Thermoplastic polyester | |||
| braid material | Aramidic fiber | |||
| cover material | Antiabrasion polyurethane | |||
