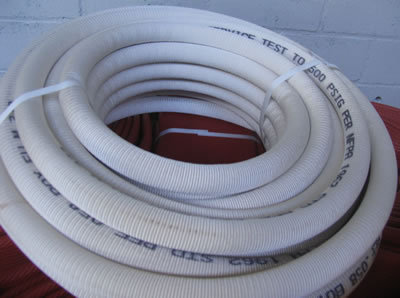

Asbestos Free Covered Furnace Coolant Hose

Application:
For carrying power cables in glass works, electrical furnaces, servicing in iron & steel industries for protection from exposure to high temperature, current leakage, radiation from steel furnace, open flame and splashes of hot metal.

Construction :

  •   Lining : Smooth, non conductive, natural/ synthetic/blend rubber compound.
  •   Reinforcement : Natural/synthetic rubberized woven textile fabric.
  •   Cover : Oil, heat and electrical resistant synthetic rubber compound with or
             without asbestos outer.

Asbestos Covered Furnace



Nom. Bore in (mm) Tolerance on Nom. bore (mm) W.P.( Kg. / cm2 ) P.P. ( Kg. / cm2 ) B.P. ( Kg. / cm2 )
12.5 0.75 10.0 20.0 40.0
16.0 0.75 10.0 20.0 40.0
20.0 0.75 10.0 20.0 20.0
25.0 1.25 1.25 20.0 40.0
28.0 1.25 10.0 20.0 40.0
31.5 1.25 10.0 20.0 40.0
35.0 1.50 10.0 20.0 40.0
38.0 1.50 10.0 20.0 40.0
50.0 2.00 10.0 20.0 40.0
56.0 2.00 10.0 20.0 40.0
60.0 2.00 10.0 20.0 40.0
63.0 2.00 10.0 20.0 40.0
70.0 2.00 10.0 20.0 40.0
75.0 2.00 10.0 20.0 40.0
100.0 2.50 10.0 20.0 40.0
150.0 3.00 10.0 20.0 40.0
