HOSE (PTFE)

Application : Steam, Chemicals, Solvents etc.

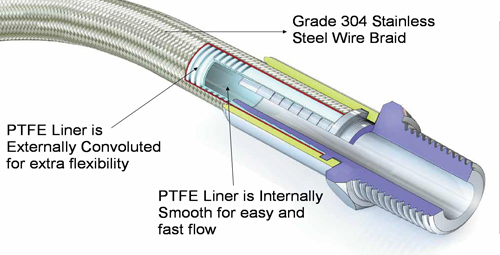

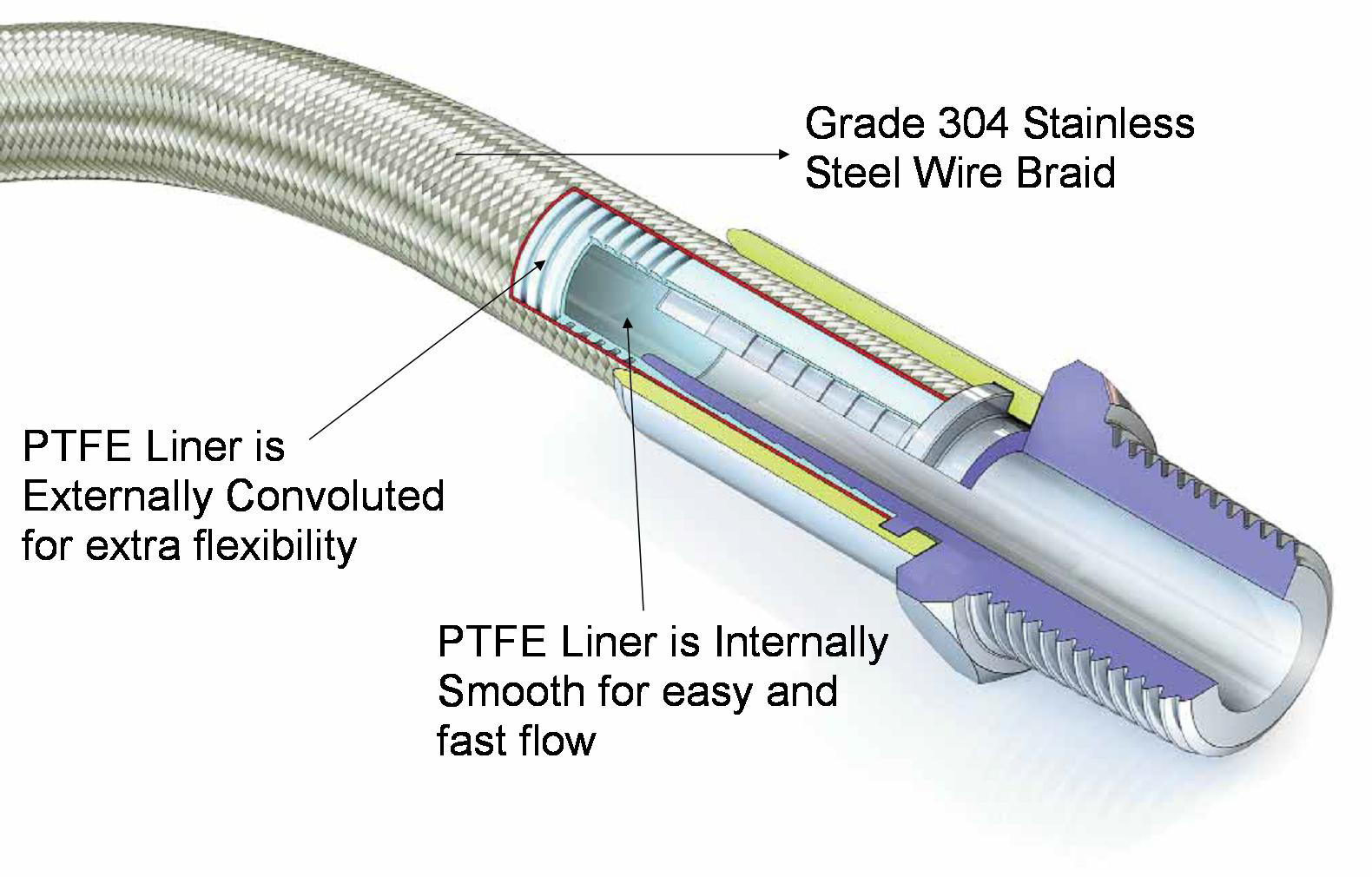

Tube : Smooth Inside core in PTFE of extruded white teflon.
Reinforcement / Cover : One braid in stainless steel AISI - 304 wire
Temp. Range : -60°C to +260°C

HOSE (PTFE)

Hose I.D. Maximum Working Pressure Minimum Burst Pressure
inch mm psi bar psi bar
3/16" 4.8 3000 200 6000 400
1/4" 6.4 3000 200 6000 400
5/16" 7.9 3000 200 6000 400
3/8" 9.5 2500 160 5000 320
1/2" 12.7 2000 135 4000 270
5/8" 15.9 1500 100 3000 200
3/4" 19.0 1200 80 2400 160
1" 25.4 1000 67 2000 133
