Application:
Suction and delivery hose for filling and discharging tanks, petrol tankers and ships with unleaded fuels (EN228:2012) with an aromatic content of components 50% max. Suitable for industrial oils, diesel oils (EN 590:2010),
fuel oils (DIN 51 603 parts 1 - 5) and mineral oil-based hydraulic oils.
Temperature range: -40°C / +90°C (for oils +100°C).
Safety factor:3 : 1

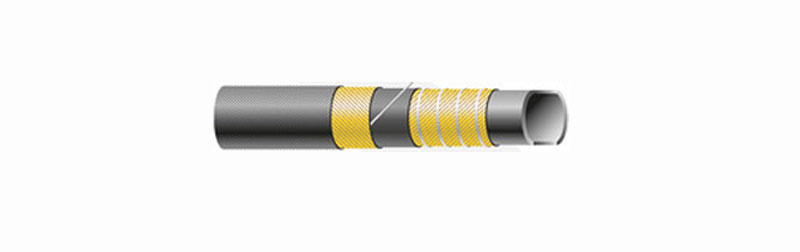

Tube: NBR, black, smooth, electrically conductive.
Reinforcement: Textile wrapped, zinc plated double steel wire helix (ID > 2 1/2" zinc plated steel wire helix), 2 crossed copper wires.
Cover: SBR/EPDM, black, abrasion resistant, ozone resistant, oil resistant (according SAE J517:2013), cloth impression
| Internal∅ in | Wall width | External ∅ | work pressure | Number of inserts | Bending Radius (min.) | Weight approx. | Coil Length | |
|---|---|---|---|---|---|---|---|---|
| mm | inch | in mm | in mm | (max.)bar | (min)in mm | kg/m | (max.)m | |
| 13,0 | 1/2 | 5,0 | 23,0 | 10 | 2 | 35 | 0.35 | 40 |
| 16,0 | 3/8 | 5,0 | 26,0 | 10 | 2 | 40 | 0,50 | 40 |
| 19,0 | 5/8 | 5,0 | 29,0 | 10 | 2 | 45 | 0,60 | 40 |
| 25,0 | 1 | 5,0 | 35,0 | 10 | 2 | 55 | 0,70 | 40 |
| 30,0 | 5,0 | 40,0 | 10 | 2 | 60 | 0,80 | 40 | |
| 32,0 | 1 1/4 | 5,0 | 42,0 | 10 | 2 | 65 | 0,90 | 40 |
| 35,0 | 5,0 | 45,0 | 10 | 2 | 75 | 1,00 | 40 | |
| 38,0 | 1 1/2 | 5,0 | 48,0 | 10 | 2 | 80 | 1,10 | 40 |
| 40,0 | 5,0 | 50,0 | 10 | 2 | 100 | 1,15 | 40 | |
| 50,8 | 2 | 5,5 | 61,8 | 10 | 2 | 130 | 1,30 | 40 |
| 60,0 | 5,5 | 71,0 | 10 | 2 | 150 | 1,80 | 40 | |
| 63,0 | 2 1/2 | 6,0 | 82,0 | 10 | 2 | 330 | 2,40 | 40 |
| >70 | 6,0 | 82,0 | 10 | 2 | 330 | 2,40 | 40 | |
| 76,0 | 3 | 6,0 | 88,0 | 10 | 2 | 350 | 2,55 | 40 |
| 101,6 | 4 | 7,0 | 115,4 | 10 | 2 | 400 | 3,90 | 40 |
| 127,0 | 5 | 8,5 | 144,0 | 10 | 2 | 600 | 5,00 | 40 |
| 152,4 | 6 | 9,0 | 170,4 | 10 | 2 | 800 | 7,60 | 40 |
