Interlock Hose

The Interlock Hoses are the helically coiled high quality metallic strip with interlock construction. These hoses are made using copper coated steel, aluminum and stainless steel in different sizes and specifications. The hoses are sturdy in construction and can bear temperature up to 800 deg Cen. Our range includes Interlock Exhaust and Conveying Hose , Interlock Tar & Asphalt Hose (Pressure Hose) and Interlocked Metal Hose and is used in chemical plants, chemical stations as suction or pressure hose. These are also used as an outer jacket for insulated pipelines and for various articulated movements. 304 over braid. We also offer a comprehensive range of couplings, flanges, screwed connectors and tube ends to suit your requirements.


Interlock Exhaust Hose Locking Section Profile:


Description:

The Interlock Exhaust and Conveying Hose are offered by us in different sizes, weights and metals, to provide perfect option for the said application in most economical manner. The hose is interlocked in construction and possess excellent flexibility, durability and construction strength. It is supplied in fully extended form without any packaging.


End Fittings:

The hose comes fitted with special type of fittings that includes fixed flanges, nipples, pipe couplings and floating flanges. These are attached with hose by means of welding using adhesives or with the method of brazing. The fittings can also be attached with the hose using automotive muffler clamps or hose clamps.


Specifications:

The Interlock Exhaust and Conveying Hose are offered by us in different specifications. These are fabricated using different materials including stainless steel, galvanized steel, aluminum and bronze. The thickness of the hose depends upon the handling or abrasive conditions in which it is used.



Applications:

These Interlock Exhaust and Conveying Hoses are applicable in

  •  Conveying
  •  Ventilating Lines
  •  Automotive Exhaust
  •  Chimney Liners.
  •  Engine Exhaust.
  •  Gas & Fume Exhaust
  •  Tractor & Generator Exhaust
  •  It is also used for protective casing as safety guards for wires, cables & tubing
          like rubber & stainless steel braided hoses.

Maximum service temperature:

  •  Stainless steel : 7500C
  •  Galvanized steel : 3500 C Service temperature may vary due to choice of packing.
  •  Material: cotton, rubber, ceramic or glass fiber yarn.

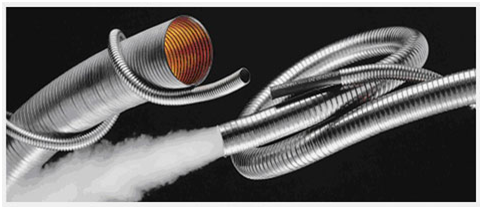

Interlock Hose


Interlock Hose


Features:

  •  High strength construction.
  •  Balance interlocked construction.
  •  Temperature and corrosion resistant.
  •  Durability.
  •  Flexibility.
  •  Can be formed and hold its shape and easily moved.
  •  Service life.

DN Inside
diameter
Outside
diameter
Permissible
Tolerance
Minimum Bending
Radius
  mm mm mm mm
20 20 24.0 0.3 100
25 25 29.5 0.3 110
30 30 34.5 0.4 120
35 35 40.0 0.4 140
38 38 43.0 0.4 160
40 40 45.0 0.4 170
45 45 50.0 0.4 180
50 50 56.0 0.5 200
54 54 60.0 0.5 220
60 60 66.5 0.6 230
65 65 72.0 0.7 245
70 70 77.0 0.7 260
75 75 82.0 0.7 275
80 80 87.0 0.7 290
90 90 97.0 0.7 345
100 100 108.0 0.8 380
110 110 118.0 0.8 410
125 125 133.0 0.9 470
130 130 138.0 0.9 490
150 150 158.0 0.9 545
165 165 173.0 0.9 565
175 175 183.0 0.9 580
200 200 208.0 1.0 675
225 225 233.0 1.0 765
250 250 259.0 1.0 885
275 275 283.0 1.0 975
300 300 309.0 1.5 1130
