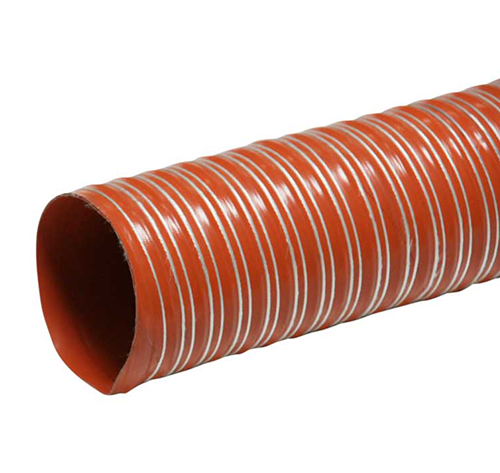

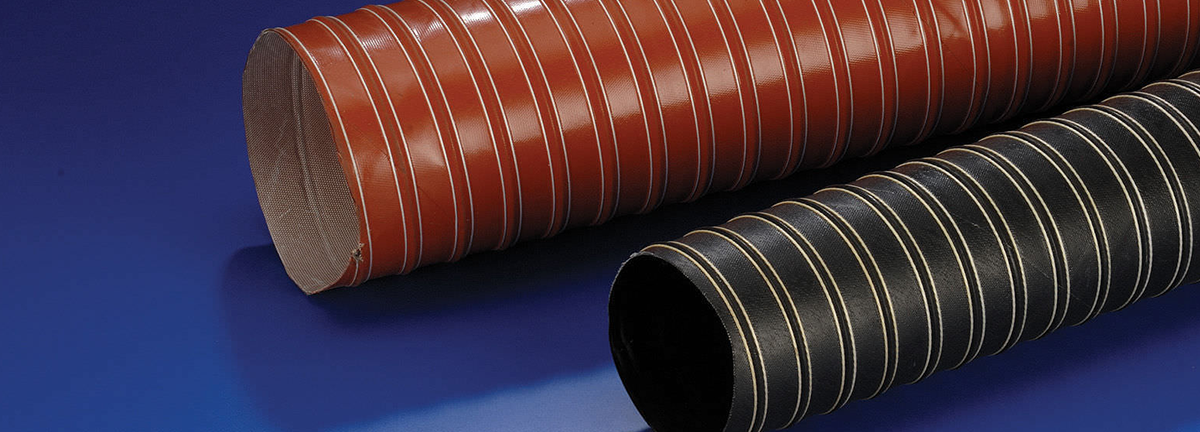

High Temp Silicone Hose

Silicon Duct Hoses are commonly used for high temperature air flow and fume removal. We have ready stocks and can supply bulk quantity as per requirement.

  •  COLOUR : BRICK RED
  •  OPERATING TEMP :- 60C + 300C
  •  DIAMETER : from 19 to 305
  •  AXIAL COMPRESSIBILITY : 30%
  •  ON REQUEST : flame retardant V-0 (UL 94)

Applications :

Silicon Duct Hose is used for various applications like Air Suction, Extraction & Blow, also with dusty particles at high temperature, specially for Ceramic Industries, Hopper Dryers, Yarn Drying Unit, Printing industry,etc.



Diameter Work Pressure bar * Max Vacuum mm / W.G. Bending Radius mm
19 3.0 7300 9
25 2.8 7100 12
38 2.6 6000 18
51 2.6 5200 24
63 2.4 4600 31
76 2.2 4300 38
89 2.0 4000 44
95 1.0 3700 49
102 1.9 3500 52
114 1.5 3000 60
127 1.4 2400 69
152 1.2 1700 75
178 1.0 1200 90
203 0.7 900 101
250 0.5 700 150
305 0.3 500 200
The control pressure ( in bars ) is equal to the working pressure by 1,5
The max pressure ( in bars ) is equal to the working pressure by 3
The data in this table is indicative.
*= Technical data are based on +20C
DIAMETER
19 - 25 - 32 - 35 - 38 - 39 -41 - 51 - 55 - 57 - 60 - 63 - 64 - 65 - 70 - 76 - 80 - 83 - 90 - 95 - 102- 114 - 120 - 121 - 127 - 130 - 140 - 150 - 150 - 152 - 160 - 165 - 180 - 203 - 229 - 254 - 305
